ASN Smart Parking System

ASN smart parking system to the challenge of limited parking space. The future of smart parking solutions is now in your hands.

It’s more expensive to build out than a build-up, especially for parking lots.

We solved this problem by offering a fully automatic parking system. Our parking systems are packed with the latest technology addressing the growing problem of limited parking space by utilizing a smart parking system in areas with limited parking space and where land is too expensive.

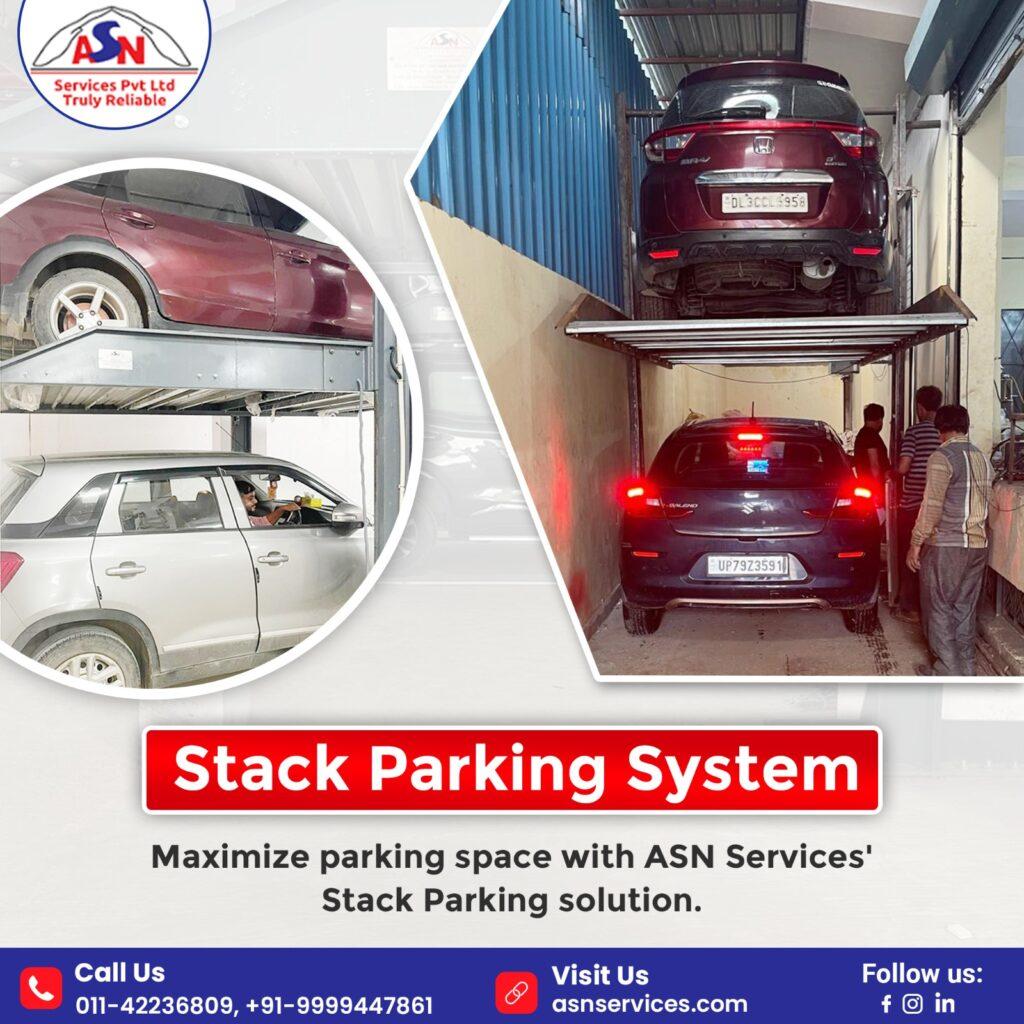

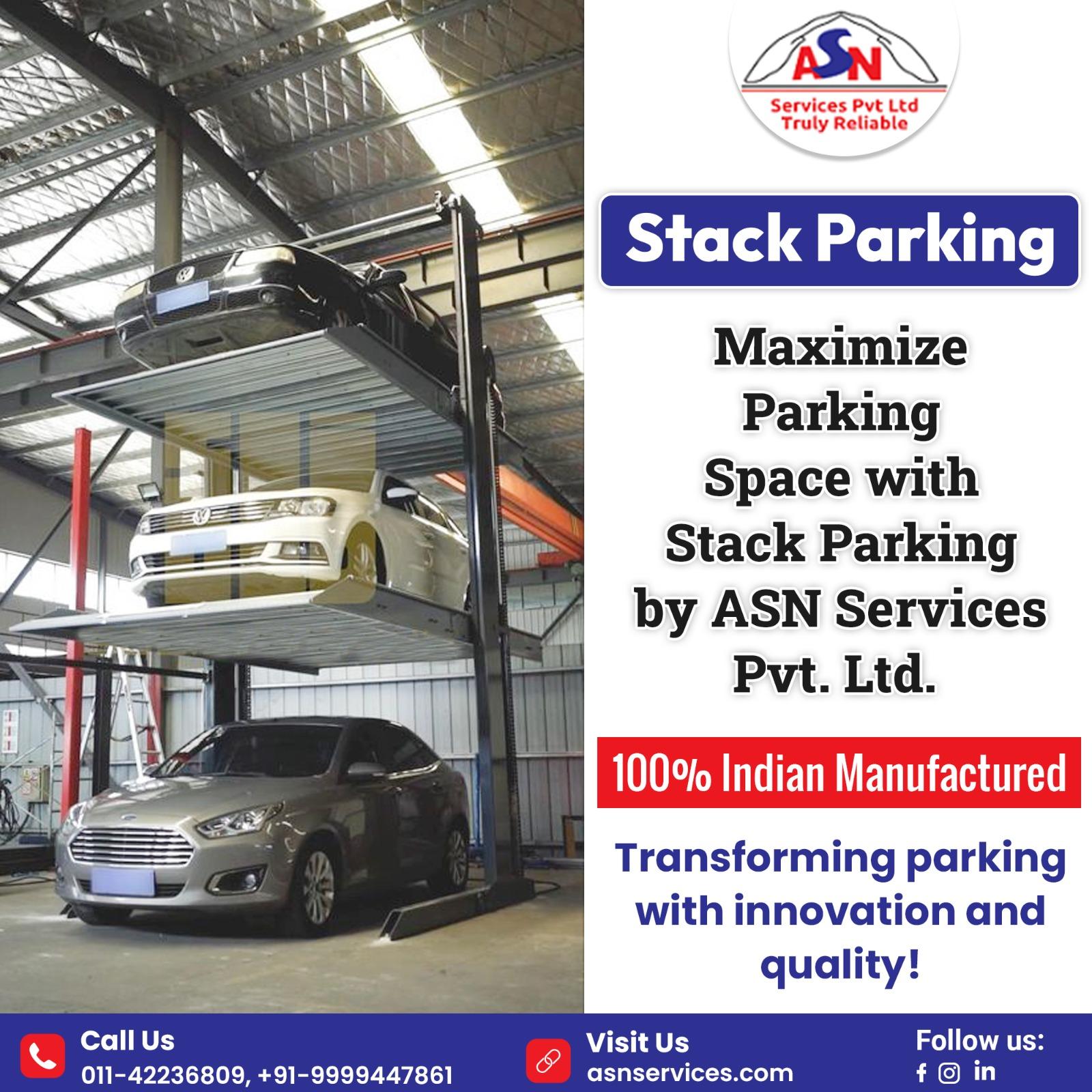

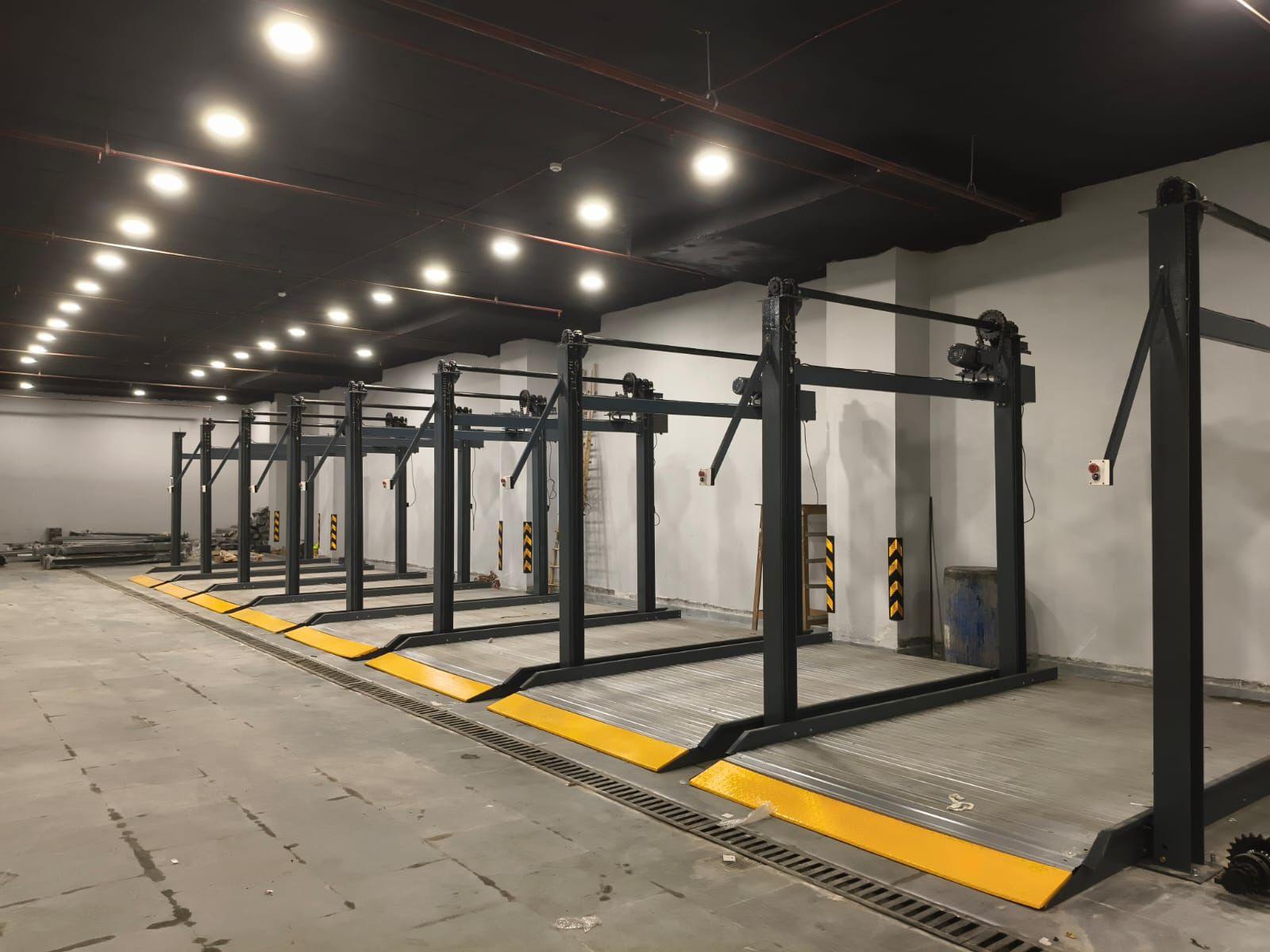

Stack Parking

Stack parking is a car parking system, that provides independent parking space for both upper and lower levels.

The vehicles are parked on the platforms.

Lower-level platforms are driven horizontally using a motor connected to traction.

Upper-level platforms are driven vertically using individual hydraulic cylinders connected to each platform. one vacant space is used for shifting the ground floor parking space sideways, thus making it possible to go up the lower floor parking space situated below the to entry-level.

STACK PARKING (Model: EMC-4200)

FEATURES:

TECHNICAL SPECIFICATIONS – Model EMC-4200
Max. Lifting Load	2000 Kg.
Total Length	4300 MM
Total Width	2332 MM
Drive Through Width	2084 MM
Total Hight	2800 MM
Max. Lifting Hight	1700/1800/1900/2000 mm
Lifting/Lowering Time	50/45 Sec
Electrical Required	3 Phase, 415V, AC, 50HZ
Motor	Helical brake geared motor, 3HP, 2.2KW 1400RPM With Gear
Drive: lift mechanism	Chain & 12mm Thickness Rope Wire
Safety Points	Electrical / Mechanical Safety: Helical brake geared motor, phase reversal, limit switch, Sensors, Mechanical Lock
Runway Platform	Galvanized platform with 2 mm Thickness
Platform Side Support Structure	MS Side Supports 2 MM Thickness. Height 200 mm, Length 4000 mm
Column Structure	H-Section Size 150X150 and 6 MM Thickness with A Columns Height 2800MM
Lock Release	Electric Auto Release

Compatible Car Segments
MODEL	UPPER LEVEL	LOWER LEVEL
EMC-4200	Sedan/Hatchback	SUV/Sedan/Hatchback

STACK PARKING (Model: H-2521/H-2018)

FEATURES:

Model	H-2521	H-2018
Max. Lifting Load	2 Ton to 2.5 Ton	1.5 Ton to 1.8 Ton
Total Length	3900 MM	3900 MM
Total Width	2230 MM	2230 MM
Drive Through Width	2130 MM	2130 MM
Total Hight	3410 MM	3210 MM
Max. Lifting Hight	2100 MM	1800 MM
Lifting / Lowering Time	50/45 Sec	45/40 Sec
Electrical Required	230-415V, 1/3 Ph, 50Hz	230-415V, 1/3 Ph, 50Hz
Power Pack	3 HP Electric Motor, 230-415 V. Hydraulic Hose Pipe ½ Inch With 240 BARS	3 HP Electric Motor, 230-415 V. Hydraulic Hose Pipe ½ Inch With 240 BARS
Safety Points	Sensors, Safety Lock	Sensors, Safety Lock
Runway Platform	Galvanized platform with 2.2 mm Thickness	Galvanized platform with 2.2 mm Thickness
Platform Side Support Structure	MS Side Supports 2.5 MM Thickness	MS Side Supports 2.5 MM Thickness
Column Structure	C-Section 2, Size 3400X75X200 and 10 MM Thickness with A Columns Hight 3400MM. Each Column Should be Anchored into RCC Floor Depth 200 mm Length, 20mm OD. Each Column Anchored By 4 – Anchor Bolts.	C-Section 2, Size 3200X75X200 and 10 MM Thickness with A Columns Hight 3200MM. Each Column Should be Anchored into RCC Floor Depth 200 mm Length, 20mm OD. Each Column Anchored By 4 – Anchor Bolts.
Hydraulic Cylinder	Stroke–2050 (1st 990, 2nd 1050), Load–2.5Ton, Working Pressure–160 BAR, Testing Pressure–200BAR	Stroke–2050 (1st 990, 2nd 1050), Load–1.8Ton, Working Pressure–160 BAR, Testing Pressure–200BAR
Lock Release	Electric Auto Release	Electric Auto Release

Compatible Car Segments
MODEL	UPPER LEVEL	LOWER LEVEL
H-2521	Sedan/Hatchback	SUV/Sedan/Hatchback
H-2018	Hatchback	Sedan/Hatchback
